I. Basic Definition & Core Positioning

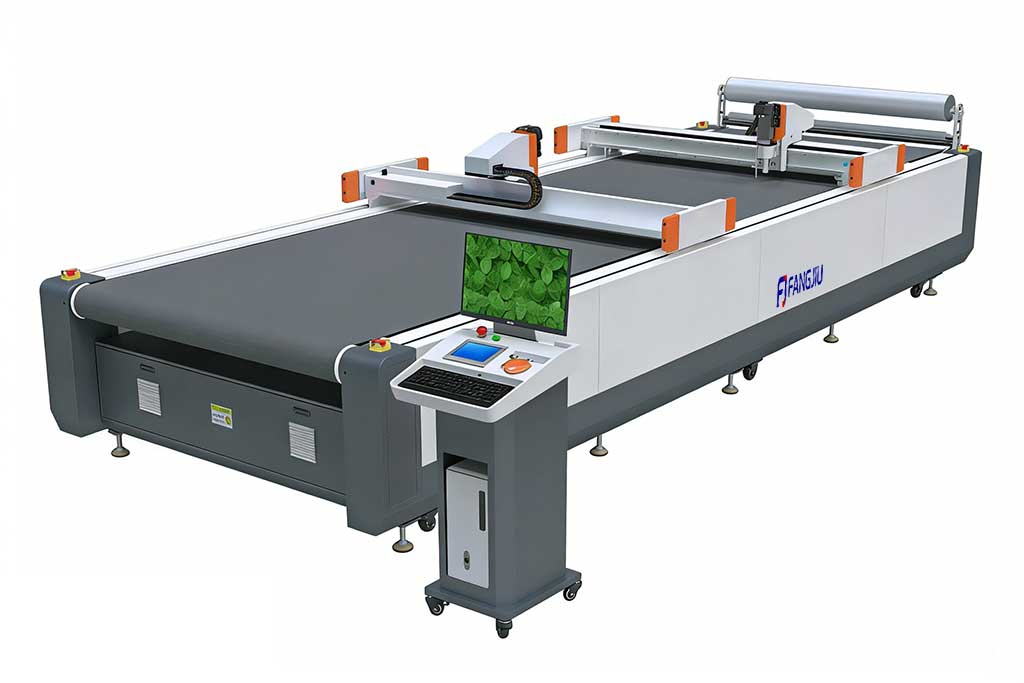

The dual-gantry vibrating knife cutting machine is a high-end CNC equipment integrating dual-gantry structure and high-frequency vibrating cutting technology, specifically designed for high-precision, high-efficiency processing of medium and large-sized flexible and semi-rigid materials.

- Core Architecture: Adopts a symmetrical dual-beam (dual-gantry) design, paired with two sets of vibrating knife heads that work independently or collaboratively, combining the advantages of large-stroke processing and precision control.
- Model Identification: Common models include 2130 (working area 2100mm×3000mm) and 2540 (2500mm×4000mm), where the numbers represent the working area in "width × length".
- Technical Value: Solves the deformation problem of single-gantry equipment during large-size processing, realizing the balance of "large stroke + high precision + high speed". It replaces traditional large die cutting and manual splicing processing.
- Industry Position: Suitable for medium and large manufacturing enterprises requiring large-area, high-volume, and high-standard processing, covering industries such as automotive, advertising, and composite materials.

II. Core Working Principle

1. Basic Principle of Vibrating Cutting

The tool head adopts high-frequency micro-vibration (20,000~36,000 times per minute, amplitude 1~3mm), achieving molecular-level separation of materials through shear force, which belongs to "cold cutting". No thermal deformation, smooth and burr-free cutting edges, supporting 360° rotating cutting to process any complex curves and special-shaped patterns. Tool head materials can be tungsten steel or diamond, adapting to materials of different hardness (from flexible fabrics to hard composite materials).

2. Dual-Gantry Collaborative Working Mechanism

- Synchronous Motion Mode: The dual gantries move synchronously along the guide rails, driving the tool heads to complete large-area continuous cutting, avoiding deformation errors of single-gantry equipment during long-stroke processing.
- Independent Control Mode: The two sets of gantries can be independently programmed to complete different processes (e.g., one set for cutting, one set for scribing) or process different workpieces simultaneously, flexibly adapting to multi-task scenarios.
- Stability Guarantee: The symmetrical structure of the dual beams disperses stress, reducing machine vibration during high-speed operation and ensuring consistent precision during large-size processing.

III. Core System Components

System Components	Function Description
Dual-Gantry Assembly	High-strength aluminum alloy or steel structure dual beams with symmetrical design, paired with precision linear guide rails to ensure stable large-stroke movement.
Dual-Servo Drive System	Two sets of independent servo motors + ball screws drive the dual gantries to move synchronously or asynchronously with a synchronization accuracy of ≤0.03mm.
High-Frequency Vibrating Knife Head Set	1-2 configurable tool heads supporting quick replacement (straight knife, round knife, creasing knife) with independently adjustable vibration frequency.
Intelligent Control System	Industrial-grade CNC controller supporting dual-gantry motion collaboration, path optimization, multi-process programming, and compatible with AI/PLT/DXF formats.
Extra-Wide Vacuum Adsorption Workbench	Working area ≥2100×3000mm, multi-zone independent adsorption with suction force of 8-15KPa, adapting to the fixation of large-area materials.
Auxiliary Systems	Dual-channel dust removal device, safety light curtain protection, automatic feeding interface (supports roll/sheet materials), and workbench heating (optional, suitable for low-temperature brittle materials).

IV. Key Technical Parameters (Standard Configuration)

Parameter Item	Typical Value Range
Working Area	Standard type: 2100×3000mm / 2500×4000mm (customizable for larger formats)
Cutting Accuracy	±0.05~±0.1mm
Dual-Gantry Synchronization Accuracy	≤0.03mm
Maximum Cutting Speed	1500~3000mm/s (single tool head); Dual tool heads synchronous: same as single tool head speed (production capacity doubled)
Vibration Frequency	20,000~36,000 times per minute (independently adjustable for tool heads)
Applicable Material Thickness	0.1~30mm (adjustable according to material characteristics, e.g., up to 25mm for carbon fiber composite materials)
Power Requirement	380V,50/60Hz(can be changed)
Equipment Dimensions	Approximately 5500×4200×1800mm (length × width × height, slightly different by model)
Overall Weight	Approximately 3500~5000kg

V. Core Performance Advantages

1. Outstanding Large-Size Processing Capability
- Working area is generally ≥2100×3000mm, capable of directly processing large whole-board materials (e.g., 2.4m×1.2m KT boards, 3m-wide curtain fabrics).
- The dual-gantry structure reduces beam deformation during long-stroke processing, with a cutting error of ≤0.1mm/m for large-size workpieces, far exceeding single-gantry equipment.

2. Excellent Precision & Stability
- Dual-servo drive + dual-gantry guidance results in machine vibration of ＜0.02mm during high-speed operation, ensuring consistent precision during long-term continuous processing.
- The multi-zone design of the vacuum adsorption workbench ensures no dead corners for adsorption of large-area materials, avoiding displacement during cutting.

3. Balanced Efficiency & Flexibility
- The dual tool head configuration supports "synchronous cutting of identical workpieces" (doubling production capacity) or "asynchronous processing of different processes" (completing cutting + creasing + punching in one pass).
- Intelligent nesting software optimizes paths, increasing material utilization rate by 35%+, especially suitable for high-volume standardized production.

4. Strong Multi-Material Adaptability
- Compatible with more than 30 types of materials such as leather, fabric, PVC, foam, carbon fiber, glass fiber, honeycomb board, and corrugated paper.
- Presets exclusive parameters (vibration frequency, cutting speed, tool pressure) for different materials, supporting one-click call for easy operation.

5. Optimized Operation & Maintenance Costs
- The rigid dual-gantry structure has a low wear rate, extending the equipment service life by 30% compared with single-gantry.
- Tool heads wear evenly, with a replacement frequency 50% lower than traditional cutting equipment, resulting in more economical consumable costs.

VI. Typical Application Scenarios

1. Automotive Interior Industry
- Whole-piece cutting of large automotive seat fabrics, roof liners, and door panel interiors without splicing.
- High-precision cutting of new energy vehicle battery pack insulation materials (e.g., PI film, foam).

2. Advertising & Display Industry
- Special-shaped cutting of large-format KT boards, foam boards, and PVC foam boards, supporting integrated processing of large exhibition panels.
- Continuous cutting of 3m-wide light box cloth and knife-coated cloth, adapting to the production of large outdoor advertisements.

3. Composite Material Processing
- Large-size precision cutting of carbon fiber prepregs and glass fiber cloth for aerospace applications.
- Forming and cutting of wind turbine blade filling materials and sports equipment (surfboards, skis).

4. Home Furnishing & Home Textile Industry
- Continuous whole-roll processing of large curtains, sofa covers, and mattress fabrics, doubling daily production capacity.
- Batch cutting of custom furniture special-shaped decorative parts and soft-pack materials.

5. Packaging & Printing Industry
- Die-less cutting of large-size corrugated cartons and honeycomb cartons, supporting personalized packaging design.
- High-precision die-cutting of large labels and posters with smooth edges requiring no secondary processing.

VII. Brief Operation Process

1. Design & Nesting: Design patterns using CAD/CAM software, import them into the equipment control system, and optimize cutting paths through intelligent nesting.
2. Material Preparation: Lay whole rolls or large-format sheet materials on the vacuum adsorption workbench and start the adsorption system to fix the materials.
3. Equipment Debugging: Select the working mode (dual-gantry synchronous/asynchronous), match material parameters, and calibrate the dual-gantry synchronization accuracy.
4. Processing Execution: Start the equipment, and the dual gantries drive the tool heads to cut according to the preset path, monitoring the processing status in real time.
5. Finished Product Processing: After processing, turn off the adsorption, unload the finished products, and conduct dimensional and edge quality inspections.

With "dual-gantry structure + high-frequency vibrating cutting" as the core, the dual-gantry vibrating knife cutting machine perfectly solves the industry pain points of "insufficient precision, low efficiency, and poor stability" in large-size material processing. It combines large-stroke processing capability with micron-level precision control, meeting both the large-scale mass production needs of medium and large enterprises and high-end customized processing scenarios. It has become a core equipment for digital upgrading in industries such as automotive interiors, advertising and display, composite materials, and home textiles, and is an ideal choice for "large-size, high-precision, high-efficiency" processing needs.
