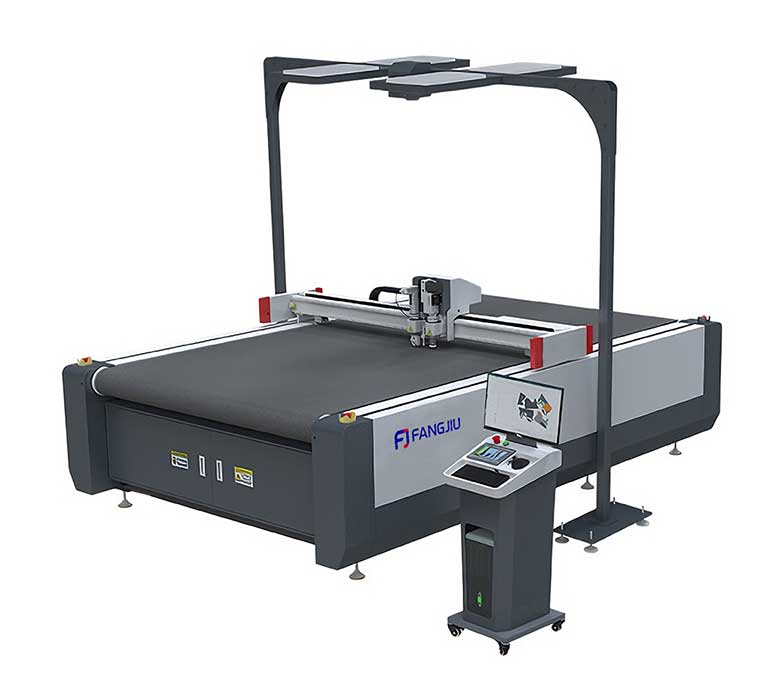

The Large Vision Vibrating Knife CNC Cutting Machine is a precision automated equipment that integrates high-resolution industrial camera vision system with high-frequency vibrating knife cutting technology. Designed specifically for efficient and accurate cutting of flexible and semi-rigid materials, it adopts an intelligent working mode of "visual recognition + CNC cutting", completely transforming the traditional die-cutting method and realizing an intelligent processing experience of "what you see is what you get".

I. Core Working Principle

1. Working Process of Large Vision System

• Image Acquisition: High-definition SLR/industrial camera quickly scans the material surface to capture high-resolution images.
• Intelligent Recognition: AI algorithm automatically identifies material contours, patterns and defects.
• Path Planning: The system generates the optimal cutting path and automatically compensates for material deformation.
• Precision Positioning: Visual positioning accuracy reaches ±0.1mm (hairline level), ensuring complex patterns do not deviate.

2. Vibrating Knife Cutting Principle

• Tungsten steel blade performs high-frequency micro-linear reciprocating vibration (up to 36,000 times per minute) inside the tool holder.
• The blade can also rotate 360° in coordination with CNC movement of X/Y/Z axes.
• Achieves molecular-level separation of materials through high-frequency vibrational shear force, belonging to "cold cutting" without thermal deformation.
• Cutting speed can reach 1.5 meters per second, 3 times more efficient than traditional processes.

II. Key System Components

System Components	Function Description
Visual Recognition System	High-resolution camera + AI algorithm for automatic edge tracing, positioning and nesting.
Vibrating Knife Cutting System	High-frequency vibrating tool head (optional with round knife, bevel knife and other multi-tools).
CNC Motion Platform	High-precision servo motor + linear guide rail to ensure ±0.1mm positioning accuracy.
Intelligent Control System	Touchscreen operation interface supporting direct import of CAD files.
Vacuum Adsorption Workbench	Stabilizes materials to prevent displacement during cutting.
Automatic Feeding System	Supports automatic feeding of roll and sheet materials, greatly improving efficiency.

III. Outstanding Performance Advantages

1. Precision and Quality

• Cutting accuracy of ±0.1mm, suitable for precision part processing.
• No burrs or thermal deformation on the cutting edge, especially suitable for heat-sensitive materials.
• Accurate following of complex patterns to ensure pattern integrity.

2. Efficiency and Productivity

• Cutting speed up to 1500mm/s, significantly reducing processing time.
• Multi-tool configuration can complete composite processes such as cutting, punching and scribing simultaneously.
• Stable and reliable 24/7 continuous operation, suitable for mass production.

3. Material Adaptability

• Widely applicable to leather, fabric, Oxford cloth, canvas, PVC, foam, carbon fiber, composite materials and more.
• Can cut various flexible materials with thickness of 0.1-20mm.
• Presets 20+ cutting parameters for different materials, one-click call.

4. Intelligence and Automation

• Automatic recognition of material contours, no manual positioning required.
• Intelligent nesting optimization, material utilization rate increased by 30%+, waste rate less than 2%.
• Integrated automatic feeding, alignment and cutting, reducing manual intervention.

5. Cost-Effectiveness

• Die-less processing, saving die production and storage costs.
• Blade service life is 3 times that of traditional tools, reducing consumable costs.
• Saves 70%+ labor, reducing overall production costs by 30%.

IV. Typical Application Scenarios

1. Apparel and Leather Products

• Complex cutting pieces for fashion, cheongsams, swimwear, cycling clothing, etc.
• Precision cutting of leather luggage, leather shoes and leather garments.

2. Home Furnishing and Interior Decoration

• Cutting of curtain, sofa cover and mattress fabrics.
• Processing of automotive interior parts (seats, instrument panels, door panels).

3. Advertising and Display

• Precision cutting of posters, display boards and KT boards.
• Efficient processing of light box cloth, flags and banners.

4. Composite Material Processing

• Cutting of high-tech materials such as carbon fiber, glass fiber and prepreg.
• Processing of flexible circuit boards and insulating materials in the electronics industry.

5. Packaging and Printing

• Die-less cutting of folding cartons and corrugated boxes.
• Precision cutting of labels and stickers.

V. Main Technical Parameters (Typical Model)

Parameter Item	Value Range
Working Area	Standard type: 1600×2500mm (Model 1625), 2100×2500mm (Model 2125)
Cutting Accuracy	±0.1mm
Maximum Cutting Speed	1500mm/s
Vibration Frequency	Up to 36,000 times/minute
Applicable Material Thickness	0.1-20mm
Power Requirement	380V/220V, 50/60Hz (can be changed)
Working Environment	Temperature: 5-35℃, Humidity: 20%-80% (no condensation)
Equipment Dimension	Approximately 3500×2800×1600mm (slightly different by model)
Weight	Approximately 1500-2500kg
